Price shown for model QUADRO-G 640x480 25mm

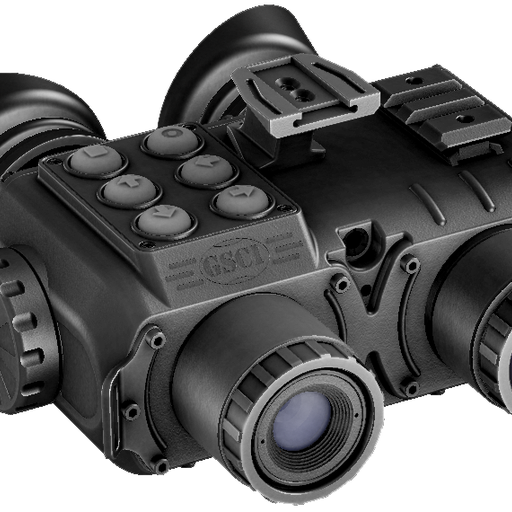

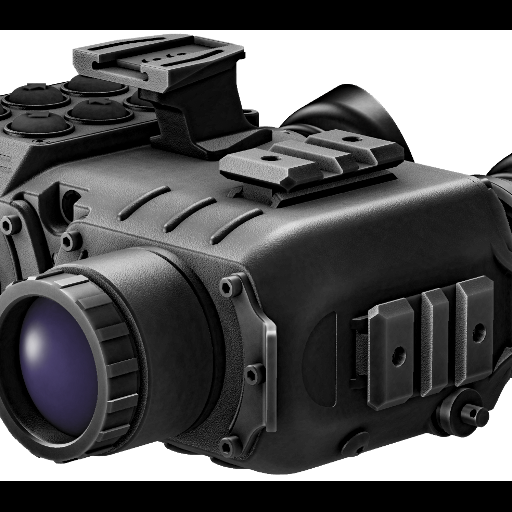

Lightweight Fusion Goggles QUADRO-G



The QUADRO-G is the new augmented vision goggles for tactical surveillance and observation at short- and medium-range distances.

Along with selecting between visible/near-infrared and far-infrared (thermal) channels individually, GSCI’s Unique Patented technology allows to produce and display real-time, delay-free fusion image that superimposes all ranges of the spectrum from its sensors to successfully detect any target and defy poor lighting or weather conditions. Wide field of view allows for better situation awareness.

The unit is small and lightweight, and yet made of a hard-anodized aluminum for added strength and shock resistance. The unit is compatible with most head gears and helmet mounts for hands-free operation.



KEY FEATURES



¨ 100% Target Detection Capability

¨ Dual-Eye Observation

¨ Multi-Mode 24/7 Operation

¨ High Situational Awareness

¨ Auto-NUC: No Calibration Needed

¨ Universal Power Solution



MAIN APPLICATIONS



¨ Defence

¨ Security

¨ Border Patrol

¨ Special Forces

¨ Surveillance

¨ Reconnaissance



Face Recognition Technology Ready.



The QUADRO lineup is designed utilizing GSCI’s patented technology that produces and displays real-time, delay free fusion image that superimposes both spectral ranges covered by its sensors. Besides a number of unique features, this device combines consequential technologies to produce an image allowing for facial recognition in low light or night conditions. The data recorded can be used for enhanced real-time biometrics and post mission forensic analysis for covert nighttime operations. Using this type of technology for recognition at nighttime has revolutionized warfare as it has proven extremely beneficial for informing a soldier that the individual is someone of interest and reducing risk of misidentification.

Fused images can be used in combination with biometric face databases/watch lists that only contain visible face imagery. The fusion technology allows taking advantage of both technologies and combining thermal and visible imagery to jointly preserve the shape of the entire face and appearance of the local identifying details.

Detecting objects that were difficult, or impossible, to see using current state-of-the-art thermal cameras was the main objective behind the design of the QUADRO systems, and all the functions can be done with a simple press of a button.



Additional Features such as Digital Edge Detection and Digital Detail Enhancement make Face Recognition even more effective




OPTICAL PARAMETERS

Optical Magnification

1X

Field of View

24.5°x18.5°

Focusing Range

0.5m .. Infinity

Eyepiece

Dual

Eyerelief

Min. 20mm

SYSTEM PARAMETERS: CAPABILITIES AND SPECIAL FEATURES

Digital Passive Stadiametric Rangefinder (SRF)

Yes

Digital Detail Enhancement Feature (DDE)

Yes

Digital Edge Detection Feature (DED)

Yes

Wide Dynamic Range Feature (WDR)

Yes

Stow Safety Feature (SSF)

Yes

Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display)

Optional: 3-Axis Sensors - Magnetometer, Accelerometer and Gyroscope

Integrated Compass

Optional

Pitch / Roll / Azimuth Indications

Optional

Power Saving Mode

Yes

Real-Time Date-Time Stamp

Yes: Simplified, Extended, DTG Formats

Digital Video Recorder with Real-Time Stamp

Optional: Comes with Removable 32GB microSD Card

Detection Capability: Man (1.7x0.5m) / NATO Target (2.3x2.3m)

830m / 1130m

Hand-Held Configuration

Yes

Tripod-Mountable

Yes

User Profiles (Configurable)

Yes: 8

Automatic/Manual Pixel Masking

Yes

Reset to Factory Defaults

Yes

External Video Feed Protection

Yes

Automatic Power Down Control

User-Configurable: 10 .. 60 minutes of inactivity

THERMAL (LWIR)CHANNEL

FPA Type

Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)

FPA Resolution and Pitch

640x480, 17μm

FPA Sensitivity (NETD)

<50mK

FPA Refresh Rate

50Hz

Digital Zoom

1X, 2X, 4X

Imaging Modes

Monochrome (White-Hot / Black-Hot) and 8 Colour Palettes

DAY/NIGHT (VNIR) CHANNEL

Sensor Type

High-Performance CCD

Sensor Size

1/3”

Resolution

800x600

Sensitivity

Up to 0.1Lux

Night Boost Mode

Yes

VNIR Modes

Day/Night






DISPLAY

Internal Display

Full Size: 0.5-Inch Diagonal, Dual-AMOLED, Colour, 800x600

Internal Display Contrast

>10000:1

IMAGE FUSION

Type

Real-time, Electronic

Fused Channels

LWIR + VNIR

Parallax Compensation

Electronic, Adjustable

Heat Signature Opacity Range

User Adjustable: 0% .. 100%

ELECTRONICS, MECHANICAL, ENVIRONMENTAL FEATURES

Accepted Batteries

4 (Four) AA: Lithium Recommended

Universal Port

Video-Out, Remote Control and External Power (4VDC .. 15VDC)

Video Output Signal

CVBS 1Vpp @ 75 Ohm

Battery Life on 4x AA

Up to 7 Hours

Environmental Protection

Min. IP67, Nitrogen-Purged Housing

Dimensions

152x132x59mm

Weight

650 grams

Operating Temperature

-40°C .. +50°C

Storage Temperature

-55°C .. +65°C

Body Material

Hard-Anodized Aluminum

Warranty

7 Years, Limited




STANDARD EQUIPMENT: WHAT’S IN THE BOX

1

Fusion Goggles

2

Mounting Bracket (Installed: Bayonet or Adjustable Dovetail)

3

Rubber Eyecups (Installed on the device) + Spares

4

Protective Lens Covers (Installed on the device)

5

USB Power Cable (5-pin to USB)

6

Video-Out Cable (5-pin to RCA)

7

Quick Swap Battery Containers (AA)

8

Neck Cord

9

Soft Carrying Pouch

10

User Manual

11

7-Year Warranty with Activation Form

12

Waterproof Hard Carrying Case

13

Cleaning Kit (3-in-1 Multi-Pen + Cleaning Cloth)


* Batteries not included
