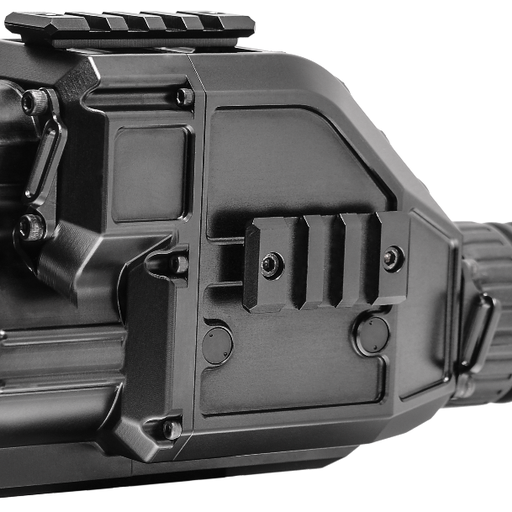

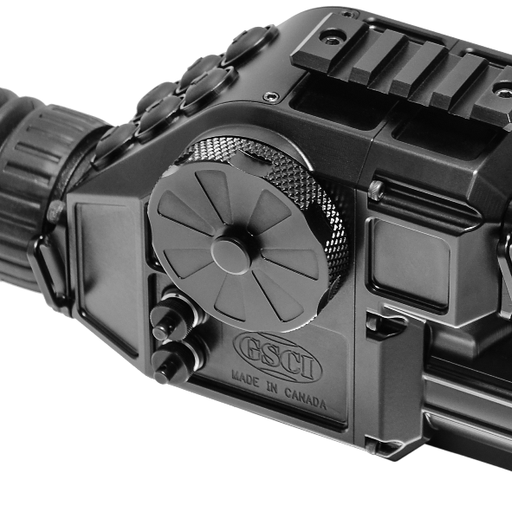

The QUADRO-S is the augmented vision multi-purpose system for tactical surveillance, observation, as well as aiming and engagement at short- and medium-range distances. Along with selecting between visible/near-infrared and far-infrared (thermal) channels individually, GSCI’s Unique Patented technology allows to produce and display real-time, delay-free fusion image that superimposes all ranges of the spectrum from its sensors to successfully detect any target and defy poor lighting or weather conditions. Wide field of view allows for better situation awareness. The unit is small and lightweight, and yet made of a hard-anodized aluminum for added strength and shock resistance.

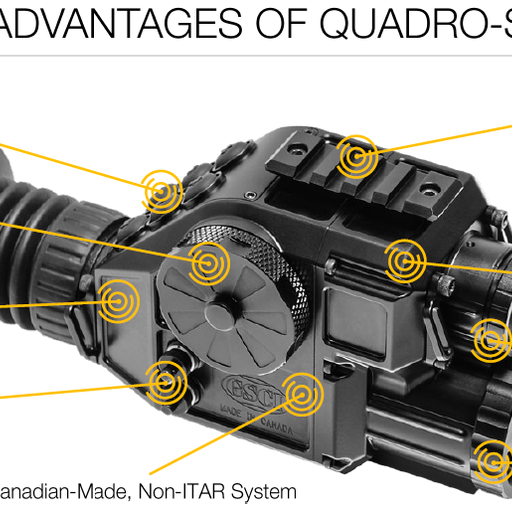

KEY FEATURES
¨ 100% Target Detection Capability
¨ Compact and Versatile
¨ Multi-Mode 24/7 Operation
¨ High Situational Awareness
¨ Auto-NUC: No Calibration Needed
¨ Universal Power Solution
MAIN APPLICATIONS
¨ Defence
¨ Security
¨ Border Patrol
¨ Special Forces
¨ Surveillance
¨ Reconnaissance
Face Recognition Technology Ready.
The QUADRO lineup is designed utilizing GSCI’s patented technology that produces and displays real-time, delay free fusion image that superimposes both spectral ranges covered by its sensors. Besides a number of unique features, this device combines consequential technologies to produce an image allowing for facial recognition in low light or night conditions. The data recorded can be used for enhanced real-time biometrics and post mission forensic analysis for covert nighttime operations. Using this type of technology for recognition at nighttime has revolutionized warfare as it has proven extremely beneficial for informing a soldier that the individual is someone of interest and reducing risk of misidentification.
Fused images can be used in combination with biometric face databases/watch lists that only contain visible face imagery. The fusion technology allows taking advantage of both technologies and combining thermal and visible imagery to jointly preserve the shape of the entire face and appearance of the local identifying details.
Detecting objects that were difficult, or impossible, to see using current state-of-the-art thermal cameras was the main objective behind the design of the QUADRO systems, and all the functions can be done with a simple press of a button.
Additional Features such as Digital Edge Detection and Digital Detail Enhancement make Face Recognition even more effective
OPTICAL PARAMETERS |
Optical Magnification |
1.4X |
Field of View |
17.7°x13.3° |
|
Focusing Range |
0.5m .. Infinity |
|
Eyepiece |
Single |
|
Diopter Adjustment Range |
-6 .. +4 |
|
Eyerelief |
Min. 50mm |
|
SYSTEM PARAMETERS: CAPABILITIES AND SPECIAL FEATURES |
Shot-Initiated FOV Feature (SIF) |
Optional: Built-In Adjustable Shock Sensor |
Digital Passive Stadiametric Rangefinder (SRF) |
Yes |
|
Digital Detail Enhancement Feature (DDE) |
Yes |
|
Digital Edge Detection Feature (DED) |
Yes |
|
Wide Dynamic Range Feature (WDR) |
Yes |
|
Stow Safety Feature (SSF) |
Yes |
|
Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display) |
Optional: 3-Axis Sensors - Magnetometer, Accelerometer and Gyroscope |
|
Integrated Compass |
Optional |
|
Pitch / Roll / Azimuth Indications |
Optional |
|
Power Saving Mode |
Yes |
|
Real-Time Date-Time Stamp |
Yes: Simplified, Extended, DTG Formats |
|
Digital Video Recorder with Real-Time Stamp |
Optional: Comes with Removable 32GB microSD Card |
|
Electronic Reticles |
Optional: 8+8 Patterns, Easy Zeroing / Calibration |
|
Detection Capability: Man (1.7x0.5m) / NATO Target (2.3x2.3m) |
1660m / 2250m |
|
Hand-Held Configuration |
Yes |
|

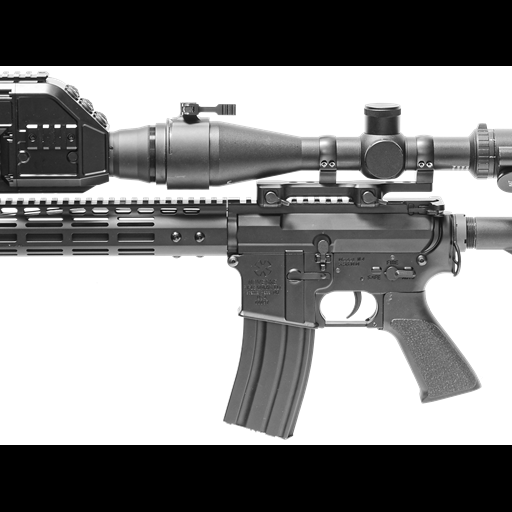

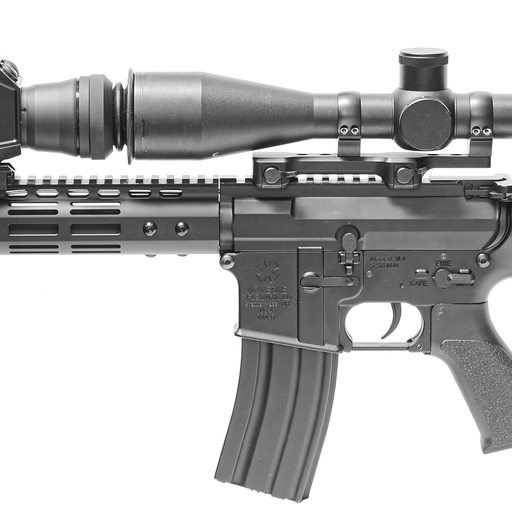

Conversion to Clip-On (In-Line) Sight |
Yes |
|

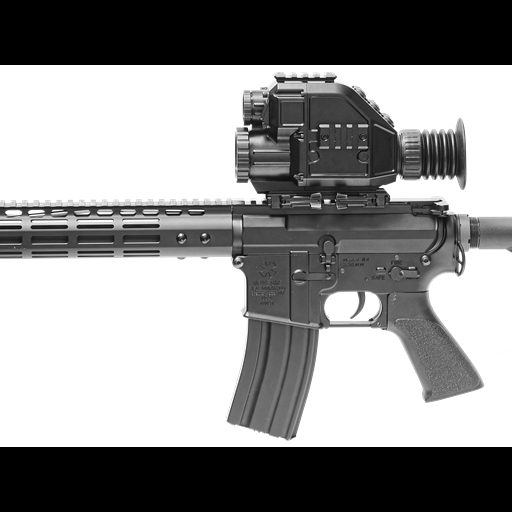

Conversion to Standalone (Direct-View) Sight |
Yes |
|

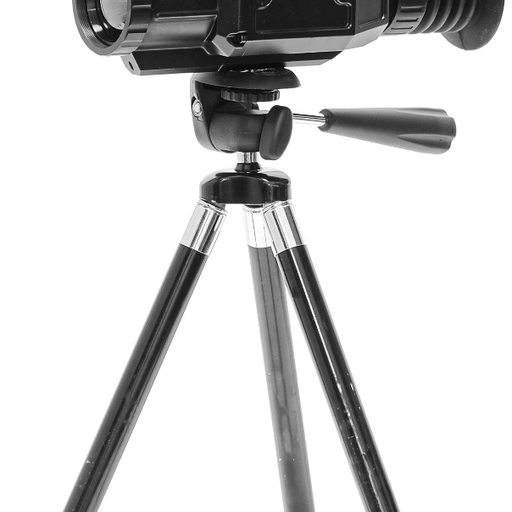

Tripod-Mountable |
Yes |
|
User Profiles (Configurable) |
Yes: 8 |
|
Automatic/Manual Pixel Masking |
Yes |
|
Reset to Factory Defaults |
Yes |
|
External Video Feed Protection |
Yes |
|
Automatic Power Down Control |
User-Configurable: 10 .. 60 minutes of inactivity |
|
THERMAL (LWIR)CHANNEL |
FPA Type |
Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation) |
FPA Resolution and Pitch |
640x480, 17μm |
|
FPA Sensitivity (NETD) |
<50mK |
|
FPA Refresh Rate |
50Hz |
|
Digital Zoom |
1X, 2X, 4X |
|
Imaging Modes |
Monochrome (White-Hot / Black-Hot) and 8 Colour Palettes |
|
DAY/NIGHT (VNIR) CHANNEL |
Sensor Type |
High-Performance CCD |
Sensor Size |
1/3” |
|
Resolution |
800x600 |
|
Sensitivity |
Up to 0.1Lux |
|
Night Boost Mode |
Yes |
|
VNIR Modes |
Day/Night |
DISPLAY |
Internal Display |
Full Size: 0.6-Inch Diagonal, AMOLED, Colour, 800x600 |
Internal Display Contrast |
>10000:1 |
|
IMAGE FUSION |
Type |
Real-time, Electronic |
Fused Channels |
LWIR + VNIR |
|
Parallax Compensation |
Electronic, Adjustable |
|
Heat Signature Opacity Range |
User Adjustable: 0% .. 100% |
|
ELECTRONICS, MECHANICAL, ENVIRONMENTAL FEATURES |
Accepted Batteries |
4 (Four) AA: Lithium Recommended |
Universal Port |
Video-Out, Remote Control and External Power (4VDC .. 15VDC) |
|
Video Output Signal |
CVBS 1Vpp @ 75 Ohm |
|
Battery Life on 4x AA |
Up to 7 Hours |
|
Environmental Protection |
Min. IP67, Nitrogen-Purged Housing |
|
Dimensions |
170x91x70mm |
|
Weight |
750 grams |
|
Operating Temperature |
-40°C .. +50°C |
|
Storage Temperature |
-55°C .. +65°C |
|
Body Material |
Hard-Anodized Aluminum |
|
Warranty |
7 Years, Limited |
STANDARD EQUIPMENT: WHAT’S IN THE BOX |
|
1 |
Fusion Unit |
2 |
Rubber Eyecup (Attached) + Spare |
3 |
Front Lenses Protective Cover (Attached) |
4 |
Hand Strap (for hand-held application) |
5 |
Neck Cord |
6 |
Quick Swap Battery Containers |
7 |
USB Power Cable |
8 |
Video-Out Cable |
9 |
Soft Carrying Pouch |
10 |
User Manual |
11 |
7-Year Warranty with Activation Form |
12 |
Waterproof Hard Carrying Case |
13 |
Cleaning Kit (3-in-1 Multi-Pen + Cleaning Cloth) |
* Batteries not included
OPTIONAL EQUIPMENT |
|
A |
Universal Remote Control Unit TRC-120 (Comes with connection cable) |
B |
Universal Multi-Voltage Battery Pack MVP-240 (Comes with connection cable) |
C |
Built-In Digital Video Recorder GS-DVR-INT (Comes with 32GB microSD card and SD adapter) |
D |
External Digital Video Recorder GS-EDVR (Comes with set of cables and 32GB SD card) |
E |
Portable Head-Mounted Display HMD-800-MOD (streams thermal video directly from the device, comes with connection cable) |
F |
Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display), 3-Axis Sensors for Compass Reading, Inclinometer/Pitch Reading, and Level/Roll Reading |
G |
Dual Lever Adjustable Rifle Mount DLM (Picatinny, with fine-tune knobs for tolerance adjustments) |
H |
Heavy-Duty Quick Release Rifle Mount MAK-QR-BLASER (Blaser, Adapter included) |
I |
Heavy-Duty Quick Release Rifle Mount MAK-QR-PICATINNY (PICATINNY, Adapter included) |
J |
Heavy-Duty Rifle Mount MAK-PICATINNY (PICATINNY, Adapter included, Allen Key Included) |
K |
Adapter for MAK Mount: Regular Length (ADAPTER-REG) or Extended Length (ADAPTER-EXT) |
L |
Clip-On Adapter COA with Rubber Shroud |
M |
Day Scope Adapter Clamp for COA for direct mounting onto daytime optics, CO-DSA (various sizes available) |
N |
Long Eyerelief Rubber Eyecup GSCI-EYECUP-LR |
O |
Tactical Infrared Illuminator IR-250S. Kit Includes IR-250S Unit (850nm), Remote Control, Picatinny Mount |
