PVS-31C-MOD Dual-Tube Night Vision Goggles PVS-31C-MOD

  • Sale
  • Regular price $0.00
Shipping calculated at checkout.

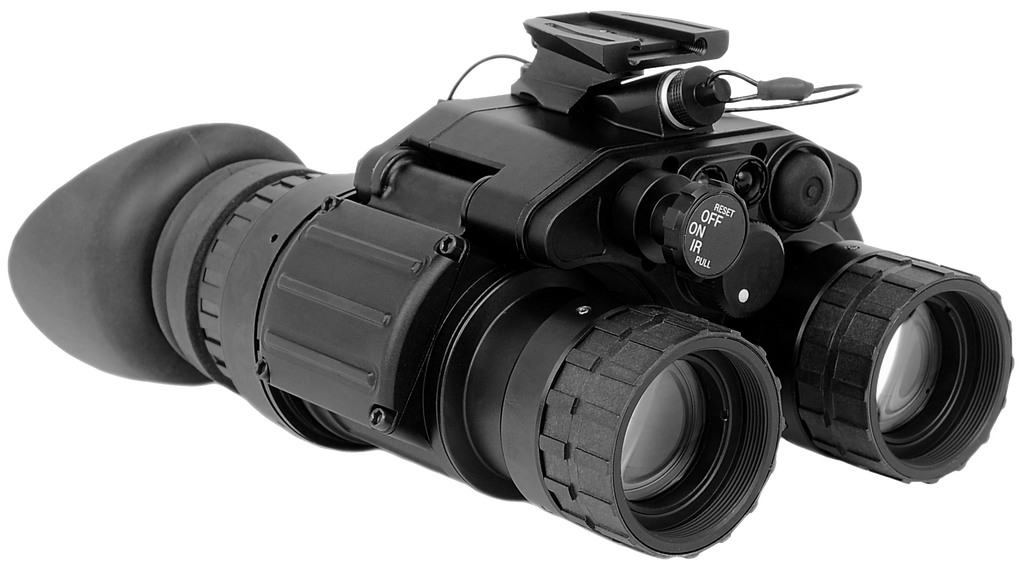

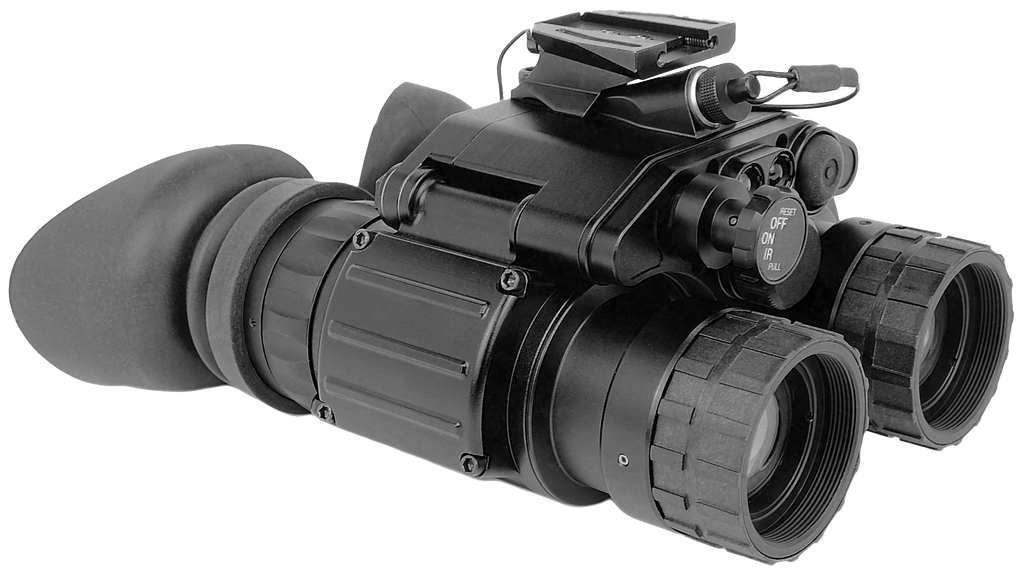

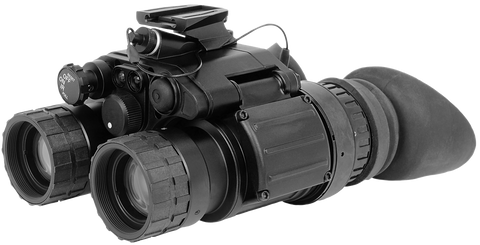

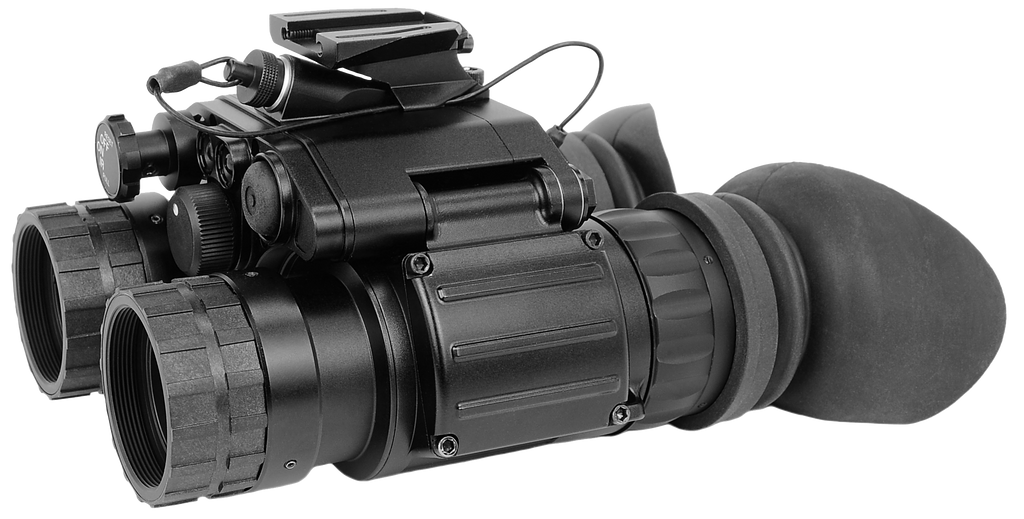

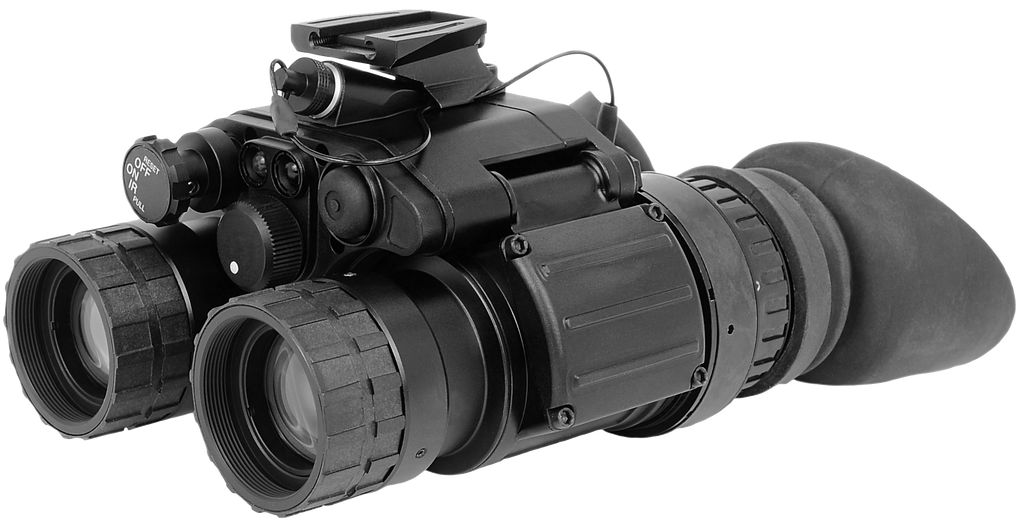

PVS-31C-MOD is a versatile and easy-to-operate night vision dual-tube binocular-goggle unit with superior depth perception. It is mostly used for conducting all kinds tactical operations in both rural and urban environments. The PVS-31C-MOD combines ergonomic design with improved functionality and accommodates features such as a dedicated Instant-On-IR button: this enables to quickly and momentarily engage IR illuminator without having to operate the switch to communicate between crew members using Morse code. The connector located at the front of PVS-31C-MOD is used to supply power to the unit from almost any power source: external battery pack, USB power bank, 12V car socket and so on. The device can also be powered by AA or CR123 battery that can be installed regardless of polarity - it is just one less thing to worry about in the dark environment.



KEY FEATURES



¨ Universal Night Operations Tool

¨ Unique Safety Features

¨ Extended Range Observation

¨ High Situational Awareness

¨ Accepts External Power Sources

¨ Preferred choice of NATO forces



MAIN APPLICATIONS



¨ Defence

¨ Security

¨ Surveillance

¨ Border Patrol

¨ Navigation

¨ Reconnaissance




TECHNICAL DATA

Optical Magnification

1X

Objective Lens Focal Length

27mm

Focusing Range

0.25m .. Infinity

Diopter Adjustment Range

-6 .. +4

Interpupillary Adjustment

50mm .. 90mm

Built-In IR Illuminator

Yes

Momentary IR-On Button

Yes

IR-On Indicator

Yes

Manual Gain Control (MGC)

Optional *

3-Position Switch

Yes

Bright Light Protection

Yes

Automatic Light Overload Shut-Off System

Yes

Low Battery Indicator

Yes

Stow Safety Feature

Yes

Flip-Up-Off Feature

Yes

Selective Channel Engagement

Yes

Power Source

1pc AA or 1pc CR123

Any Polarity Battery Insertion

Yes

Battery Life

40 Hours

External Power Supply

4VDC .. 15VDC

Dimensions

108x105x70mm

Weight

595 grams

Operating Temperature

-40°C .. +50°C

Warranty

7 Years, Limited

Made In Canada

ITAR-Free



Batteries not included



IMAGE INTENSIFIER TUBES: GEN 2+, GEN 3, ECHO, 4G

Autogating and White Phosphor options are available with selected tubes. Contact us for more details. ECHO, and 4G are the registered trademarks of Photonis Technologies S.A.S.




STANDARD EQUIPMENT: WHAT’S IN THE BOX

1

Dual-Tube Night Vision Goggles with Bayonet or Dovetail Bracket Installed

2

Rubber Eyecups (2 Installed on the device) + 2 Spare with Retaining Rings

3

Sacrificial Window (2pcs)

4

Stow Safety Feature (Integrated)

5

AA Battery Extension Adapter (Installed on the device)

6

Rubber Daytime Filter with Training Hole (Installed on the device)

7

Adjustment Kit: Allen Key + Mini-Wrench

8

USB Power Cable

9

Neck Cord

10

Soft Carrying Pouch

11

User Manual

12

Waterproof Hard Case (Optional for Gen 2+ Models)

13

7-Year Warranty with Activation Form

14

Cleaning Kit (3-in-1 Multi-Pen + Cleaning Cloth)
