 Price shown for model PVS-7-MA1-AG

Tube Type: Gen 2+

Phosphor colour: Green

FOM (figure of merit) up to 1599

ATG (autogating)

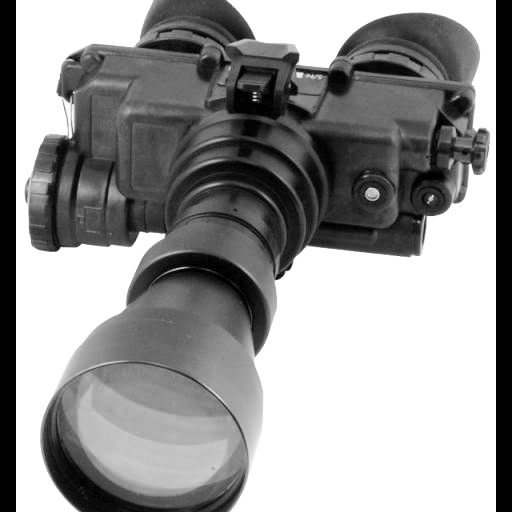

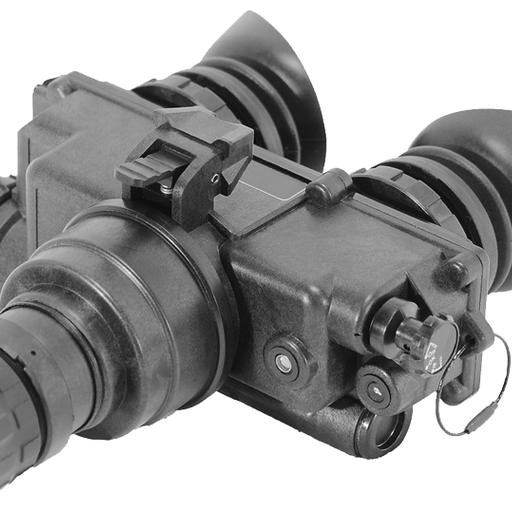

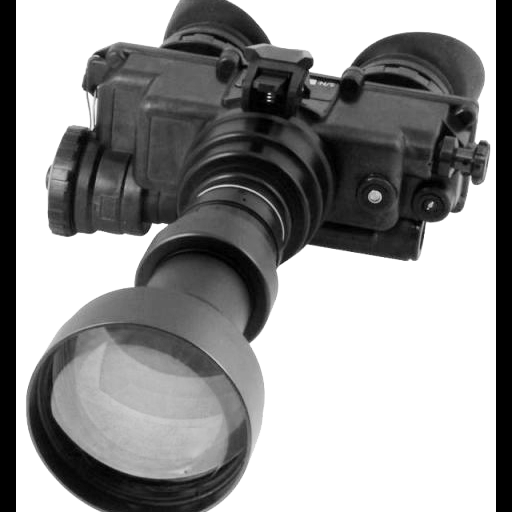

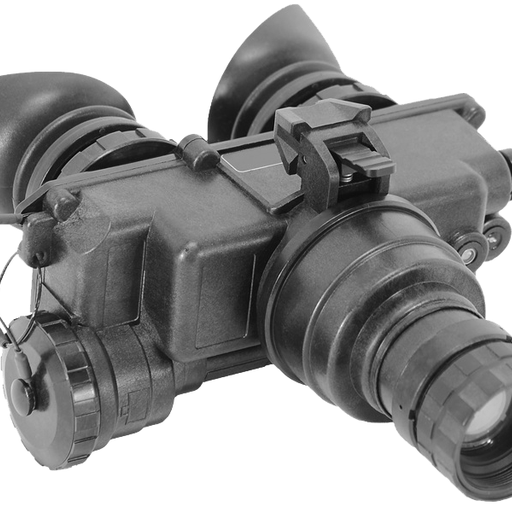

PVS-7 is the MIL-SPEC, “single-tube, dual-eye” Night Vision Goggle system with optional enhancements compared to the conventional PVS-7 unit. Designed for army, law enforcement, search & rescue professionals, it is the preferred choice for conducting critical ground-based and maritime operations during night time. Using the best coated optics to enhance night time performance as well as the top-grade I2 tubes the PVS-7 from GSCI outperforms all other night vision goggles available on the professional market today.





KEY FEATURES



¨ Dual-Eye Observation

¨ Universal Night Operations Tool

¨ Optional External Power Port

¨ Optional Manual Gain Control

¨ Stow Safety Feature

¨ Extended Range Observation

¨ High Situational Awareness

¨ Suits Multiple Applications

¨ Preferred choice of NATO forces





MAIN APPLICATIONS



¨ Defence

¨ Coast Guard

¨ Security

¨ Border Patrol

¨ Surveillance

¨ Reconnaissance






 TECHNICAL DATA

Optical Magnification

1X

Objective Lens Focal Length

27mm

Focusing Range

0.25m .. Infinity

Diopter Adjustment Range

-4 .. +4

Built-In IR Illuminator

Yes, 850nm

IR-On LED Indicator

Yes, Concealed into FOV

Interpupillary Adjustment Range

53mm .. 72mm

Automatic Light Overload Shut-Off

Yes, Built-In

Bright Source Protection

Yes

Low Battery LED Indicator

Yes, Concealed into FOV

3-Position Switch

Yes

Stow Safety Feature (SSF)

Optional

Automatic Flip-Up-Off Feature

Yes

Automatic Brightness Control

Yes

Power Source

2pcs AA Batteries

External Power Port

Optional : Accepts 4VDC .. 15VDC

Manual Gain Control

Optional

Battery Life on 2pcs AA

Up to 40 Hours

Operating Temperature

-40°C .. +50°C

Warranty

7 Years, Limited

Made In Canada

ITAR-Free

Batteries not included





IMAGE INTENSIFIER TUBES: GEN 2+, GEN 3, ECHO, 4G

Autogating and White Phosphor options are available with selected tubes. Contact us for more details.

ECHO and 4G are the registered trademarks of Photonis Technologies S.A.S.




STANDARD EQUIPMENT: WHAT’S IN THE BOX

1

Dual-Tube Night Vision Goggles with Bayonet or Dovetail Bracket Installed

2

Rubber Eyecups (2 Installed on the device) + 2 Spare

3

Demist Shield (2pcs)

4

Sacrificial Window

5

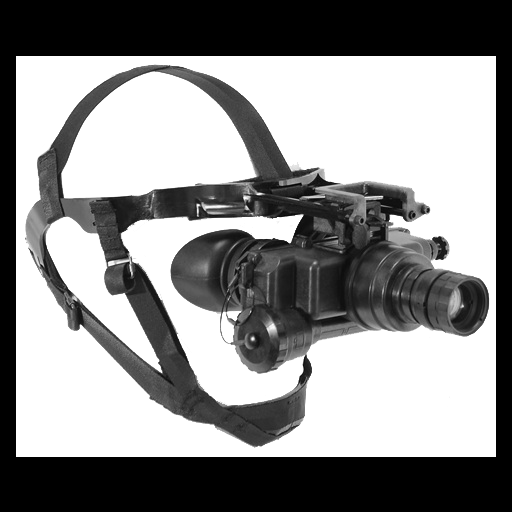

Non-Flip-Up Head Gear PHG-7

6

AA Battery Extension Adapter (Installed on the device)

7

Rubber Daytime Filter with Training Hole (Installed on the device)

8

Neck Cord

9

Soft Carrying Pouch

10

User Manual

11

Waterproof Hard Case (Optional for Gen 2+ Models)

12

7-Year Warranty with Activation Form

13

Cleaning Kit (3-in-1 Multi-Pen + Cleaning Cloth)
