Price shown is for model TI-GEAR-C345

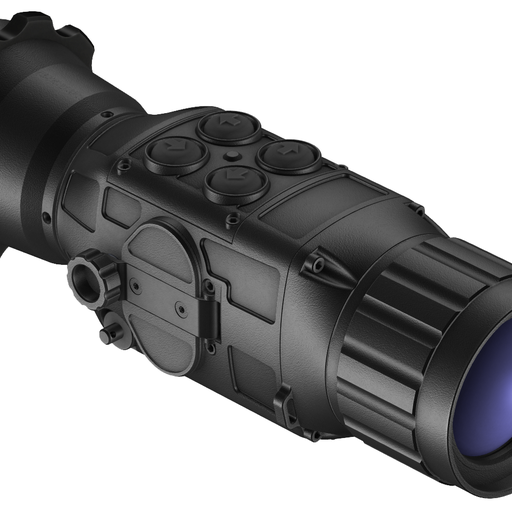

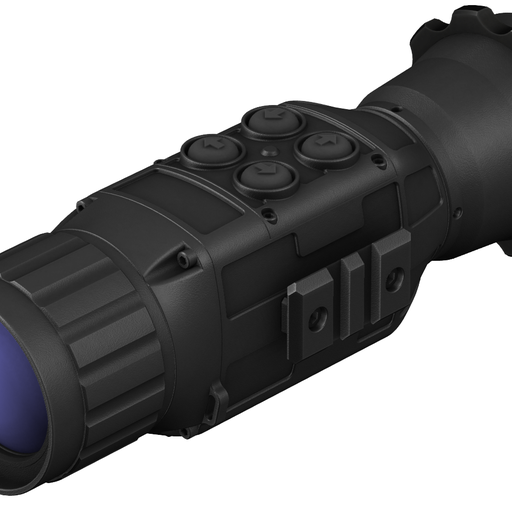

Precision Thermal Clip-On Scope TI-GEAR-C345

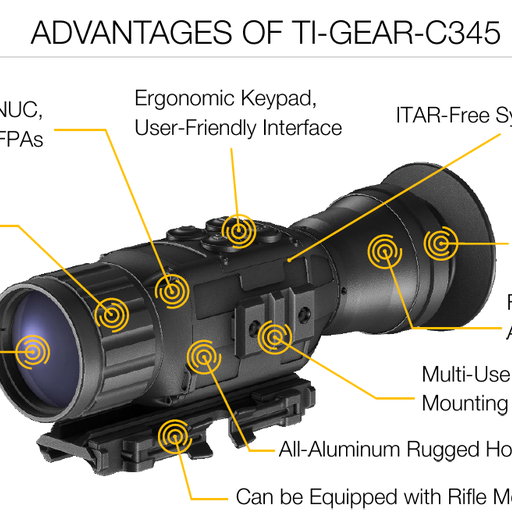

The TI-GEAR-C345 is the professional-grade thermal clip-on sight for aiming and engagement designed to work seamlessly with a wide variety of firearms and daytime scopes. The TI-GEAR-C345 is a plug-and-play unit, deployed in mere seconds with no zeroing needed. It is also a great tool for reconnaissance and tactical surveillance.
The latest generation silent and Auto-NUC sensor is at the base of the TI-GEAR-C345. GSCI proprietary hardware and software solutions are built around the sensor and offer exceptional image quality along with unique tools for added tactical advantage and user safety.
The TI-GEAR-C345 is fully dust- and waterproof, meets and exceeds modern standards. The TI-GEAR-C345 is designed for both professional users and firearms enthusiasts. It is a robust, reliable tool for long-term, intensive use in any environment, in any lighting or weather conditions.
TECHNICAL DATA:
Optical Magnification |
1X |
Objective Lens System |
45mm |
Field of View |
8.3°x6.2° |
Focusing Range |
1.5m .. Infinity |
FPA Type |
Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation) |
FPA Resolution and Pitch |
384x288, 17μm |
FPA Sensitivity (NETD) |
<50mK |
FPA Refresh Rate |
50Hz |
Digital Zoom |
1X, 2X, 4X |
Internal Display |
Full Size: 0.6-Inch Diagonal, AMOLED, Colour, 800x600 |
Imaging Modes |
Monochrome (White-Hot / Black-Hot) and 8 Colour Palettes |
Shot-Initiated FOV Feature (SIF) |
Built-In Adjustable Shock Sensor |
Digital Passive Stadiametric Rangefinder (SRF) |
Yes |
Digital Detail Enhancement Feature (DDE) |
Yes |
Wide Dynamic Range Feature (WDR) |
Yes |
Stow Safety Feature (SSF) |
Yes |
Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display) |
Optional: 3-Axis Sensors - Magnetometer, Accelerometer and Gyroscope |
Integrated Compass |
Optional |
Pitch / Roll / Azimuth Indications |
Optional |
Real-Time Date-Time Stamp |
Yes: Simplified, Extended, DTG Formats |
Digital Video Recorder with Real-Time Stamp |
Optional: Comes with removable 32GB microSD card |
Electronic Reticles |
Can be Enabled for Standalone Sight Configuration: 8+8 Patterns, Easy Zeroing / Calibration |
Detection Capability: Man (1.7x0.5m) / NATO Target (2.3x2.3m) |
1500m / 2030m |

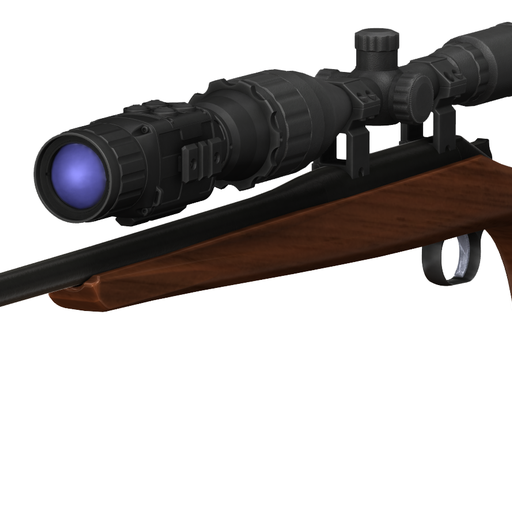

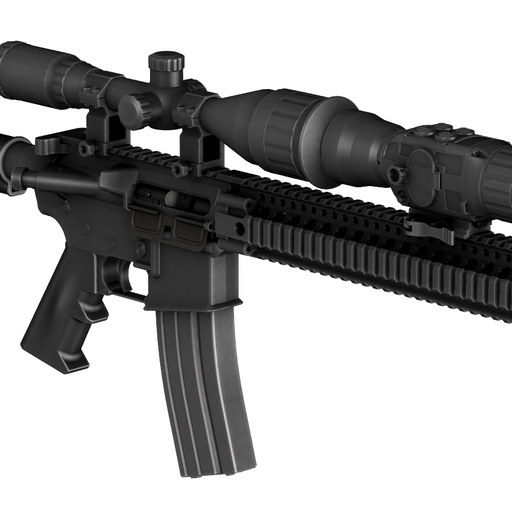

Mounting to Dayscope |
On-Rail, On-Scope Direct, On-Scope Via Clamp/Adapter |
Optimal Dayscope Magnification Range |
3X .. 12X |
Hand-Held / Tripod-Mounted Capability |
Yes: Hand-Held and Tripod-Mountable |
Conversion to Standalone (Direct View) Sight |
Yes |
User Profiles (Configurable) |
Yes: 8 |
Automatic/Manual Pixel Masking |
Yes |
Reset to Factory Defaults |
Yes |
External Video Feed Protection |
Yes |
Automatic Power Down Control |
User-Configurable: 10 .. 60 minutes of inactivity |
Accepted Batteries |
2 (two) CR123 of Any Type: Lithium / Rechargeable |
Universal Port |
Video-Out, Remote Control and External Power (4VDC .. 15VDC) |
Battery Life on 2x CR123 |
Up to 7 Hours |
Environmental Protection |
Min. IP67, Nitrogen-Purged Housing |
Dimensions |
183 x 60 x 60 mm |
Weight |
545 grams |
Operating Temperature |
-40°C .. +50°C |
Warranty |
7 Years, Limited |
Made In Canada |
ITAR-Free |
Batteries not included
STANDARD EQUIPMENT: WHAT’S IN THE BOX |
|
1 |
Thermal Imaging Clip-On Sight |
2 |
Clip-On Eyepiece with Rubber Shroud (Attached) |
3 |
Front Lens Protective Cover (Attached) |
4 |

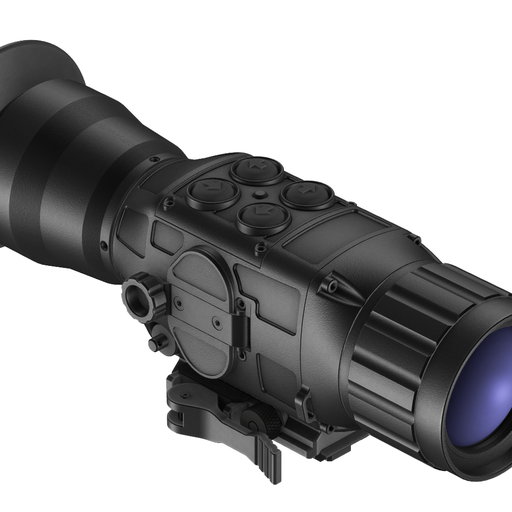

Dual Lever Adjustable Rifle Mount DLM (Picatinny, with fine-tune knobs for tolerance adjustments) |
5 |
USB Power Cable |
6 |
Video-Out Cable |
7 |
Soft Carrying Pouch |
8 |
User Manual |
9 |
Quick Reference Card |
10 |
7-Year Warranty with Activation Form |
11 |
Waterproof Hard Carrying Case |
12 |
Cleaning Kit (3-in-1 Multi-Pen + Cleaning Cloth) |
OPTIONAL EQUIPMENT |
|
A |
Universal Remote Control Unit TRC-120 (Comes with connection cable) |
B |
Universal Multi-Voltage Battery Pack MVP-240 (Comes with connection cable) |
C |
Built-In Digital Video Recorder GS-DVR-INT (Comes with 32GB microSD card and SD adapter) |
D |
External Digital Video Recorder GS-EDVR (Comes with set of cables and 32GB SD card) |
E |
Portable Head-Mounted Display HMD-800-MOD (streams thermal video directly from the device, comes with connection cable) |
F |
Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display), 3-Axis Sensors for Compass Reading, Inclinometer/Pitch Reading, and Level/Roll Reading |
G |
Heavy-Duty Quick Release Rifle Mount MAK-QR-BLASER (Blaser, Adapter included) |
H |
Heavy-Duty Quick Release Rifle Mount MAK-QR-PICATINNY (PICATINNY, Adapter included) |
I |
Heavy-Duty Rifle Mount MAK-PICATINNY (PICATINNY, Adapter included, Allen Key Included) |
J |
Adapter for MAK Mount: Regular Length (ADAPTER-REG) or Extended Length (ADAPTER-EXT) |
K |
Direct View Eyepiece GSCI-LR-EYEPIECE |
L |
Day Scope Adapter Clamp for COA for direct mounting onto daytime optics, CO-DSA (various sizes available) |
M |
Long Eyerelief Rubber Eyecup GSCI-EYECUP-LR |
