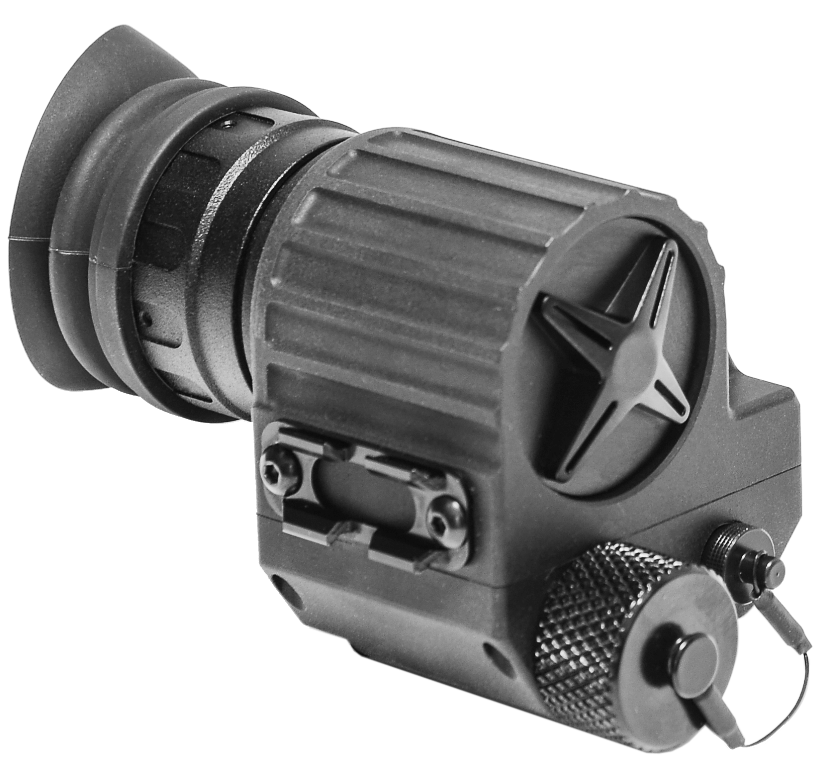

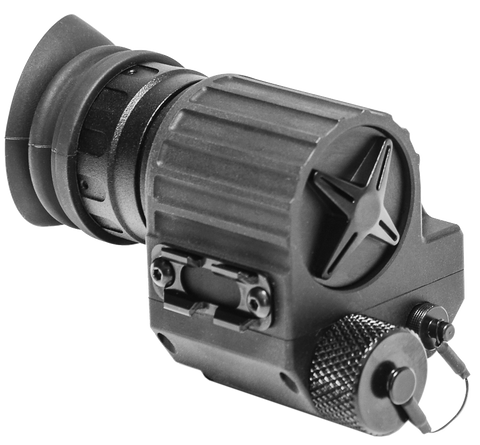

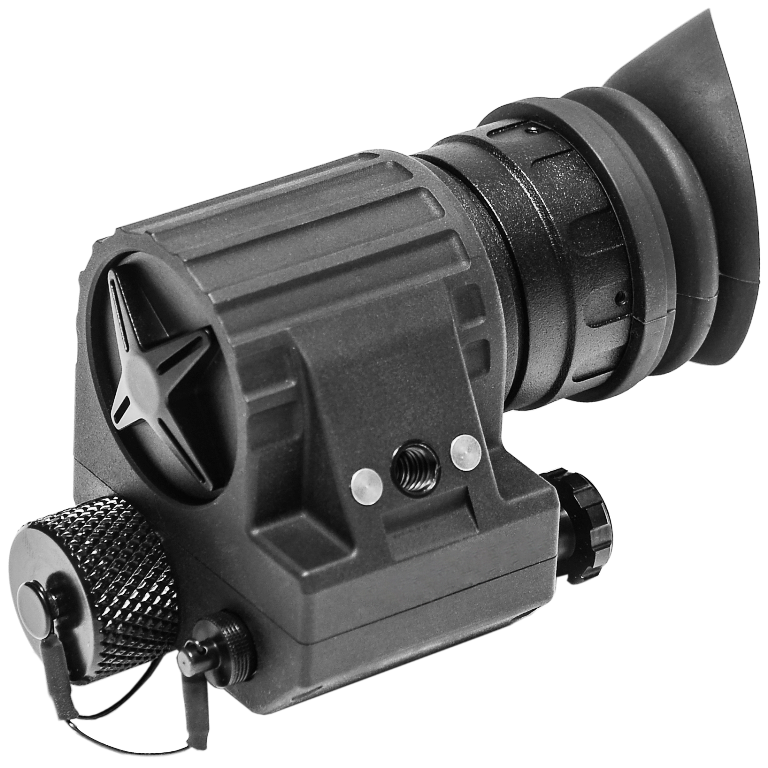

HMD-800-MOD is the modernized ultra-portable display unit that transmits and displays real-time video signal from any primary electro-optical device. It has been known and tested by various tactical teams throughout...
HMD-800-MOD is the modernized ultra-portable display unit that transmits and displays real-time video signal from any primary electro-optical device. It has been known and tested by various tactical teams throughout the world and is a perfect tool for covert operations.
HMD-800-MOD helps you observe the surroundings without exposing yourself. It can also be used with a remote control so a user can have control over the system from distance. In addition, with HMD-800-MOD two crew members can see through the same device at the same time.
KEY FEATURES
¨ Portable and Lightweight
¨ 800x600 Colour AMOLED Display
¨ Single Knob Operation
¨ Up to 10 Hours Battery Life
HMD-800-MOD SPECIFICATIONS |
|
Display Type |
Full Size: 0.6-inch, AMOLED, Colour |
Display Resolution |
800x600 |
Display Rotation Range |
-45° .. +45° |
Input Video Signal |
Auto-Detection. Analog: PAL and NTSC |
Power Source |
One (1) CR123 Battery |
Flip-Up-Off Feature |
Yes |
Polarity-Independent Power Supply |
Yes |
Environmental Protection |
Min. IP67 |
MIL-STD-810G Compliant |
Yes |
Nitrogen-Purged Housing |
Yes |
Battery Life |
Up to 10 Hours |
Dimensions |
83x60x65mm |
Weight |
200 grams |
Operating Temperature |
-40°C .. +50°C |
Warranty |
7 Years, Limited |
Export |
Available Worldwide |
STANDARD EQUIPMENT: WHAT’S IN THE BOX |
|
1 |
HMD-800-MOD Unit |
2 |
Rubber Eyecup (Installed on the device) + Spare |
3 |
Demist Shield |
4 |
Connection Cable |
5 |
Neck Cord |
6 |
Soft Carrying Pouch |
7 |
User Manual |
8 |
7-Year Warranty with Activation Form |
9 |
Cleaning Kit (3-in-1 Multi-Pen + Soft Cleaning Cloth) |
OPTIONAL EQUIPMENT |
|
A |
Standard Non-Flip-Up Head Gear PHG-7 (Bayonet Type only) |
B |
Advanced Helmet Harness HMH-1 for MICH / ACH Helmets |
C |
Universal Multi-Voltage Battery Pack MVP-240 |
D |
USB Power Cable |
E |
Universal Remote Control Unit TRC-120 (Comes with connection cable) |
